Size 14 Hybrid Stepper Linear Actuator | 35000 series Linear Actuator | Haydon Kerk
Vendor: Haydon Kerk Pittman / AMETEK (USA)

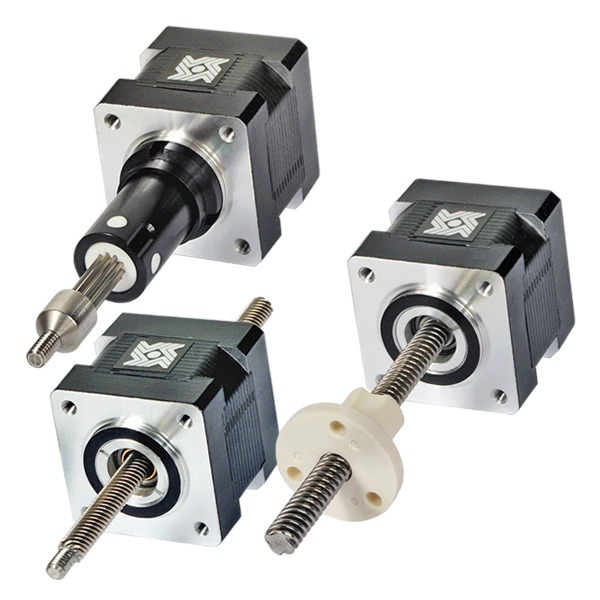

Product: Size 14 Hybrid Stepper Linear Actuator
Haydon Kerk's 35000 series size 14 stepper motor linear actuator delivers exceptional performance and is proven to provide higher force and longer life, up to 50 lbs (220 N).
| 重量 | 162 g (5.7 oz) |
| 步距角 | 1.8° |
| 相电流 | 1.25 / 0.57 / 0.24 A rms |
| 最大推力 | 50 lb (220 N) |
| 机座尺寸 | 35 mm |
| 结构形式 | 俘获式 / 非俘获式 / 外部直线式 |
| 绕组电压 | 2.33 / 5 / 12 VDC |
| 绝缘电阻 | 20 MΩ |
| 绝缘等级 | Class B (可选 Class F) |
| 转子惯量 | 16 gcm² |
| 输入功率 | 5.7 W |
| 每步直线行程 | 3.0 – 48.7 µm (Ø5.54 mm 丝杠) |
