HiPNUC HI14 High-Precision Industrial IMU

Vendor: HiPNUC ( )

Product: HI14 IMU

HiPNUC HI14 High-Precision Industrial IMU

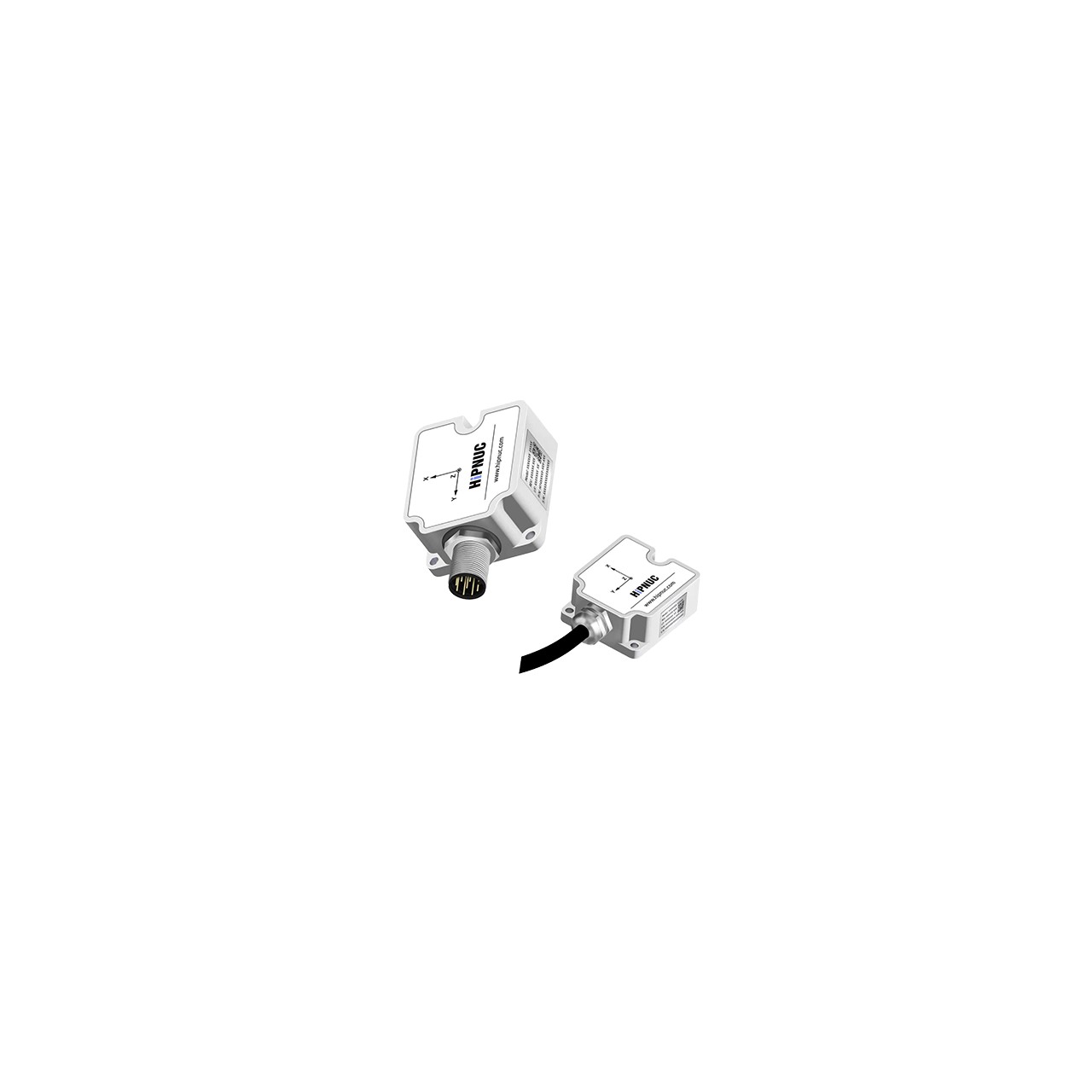

HiPNUC (Beijing) HI14 is a high-precision industrial IMU: gyro ±2000 °/s (±4000 °/s on S* high-range variants) with best S5-grade three-axis bias instability of 0.9/1.1/1.0 °/h; accelerometer ±24 g/±32 g with best bias instability of 0.0045~0.01 mg. IP68-rated housing (M12 version 59×40×20 mm, PG version 40×36×16.5 mm), wide 7~48 V supply, output at UART 1000 Hz / RS485 250 Hz / CAN 200 Hz, RoHS/CE certified — built for harsh environments such as outdoor robots, robot dogs, unmanned boats and industrial mobile platforms.

Axes	6 (3-axis accel + 3-axis gyro)
Dimensions	M12: 59 × 40 × 20 mm / PG: 40 × 36 × 16.5 mm
Output Rate	UART 1000 Hz / RS485 250 Hz / CAN 200 Hz
Certifications	RoHS / CE / IP68
Supply Voltage	7~48 V
Gyro Full Range	±2000 °/s (±4000 °/s on S* variants)
Accel Full Range	±24 g / ±32 g
Protection Rating	IP68
Gyro Bias Instability	X 0.9 / Y 1.1 / Z 1.0 °/h (best S5 grade)
Accel Bias Instability	0.0045~0.01 mg (best S5 grade)

IMU High Precision IP68 HiPNUC Industrial grade RS485 CAN

https://www.hipnuc.com/hi14.html
