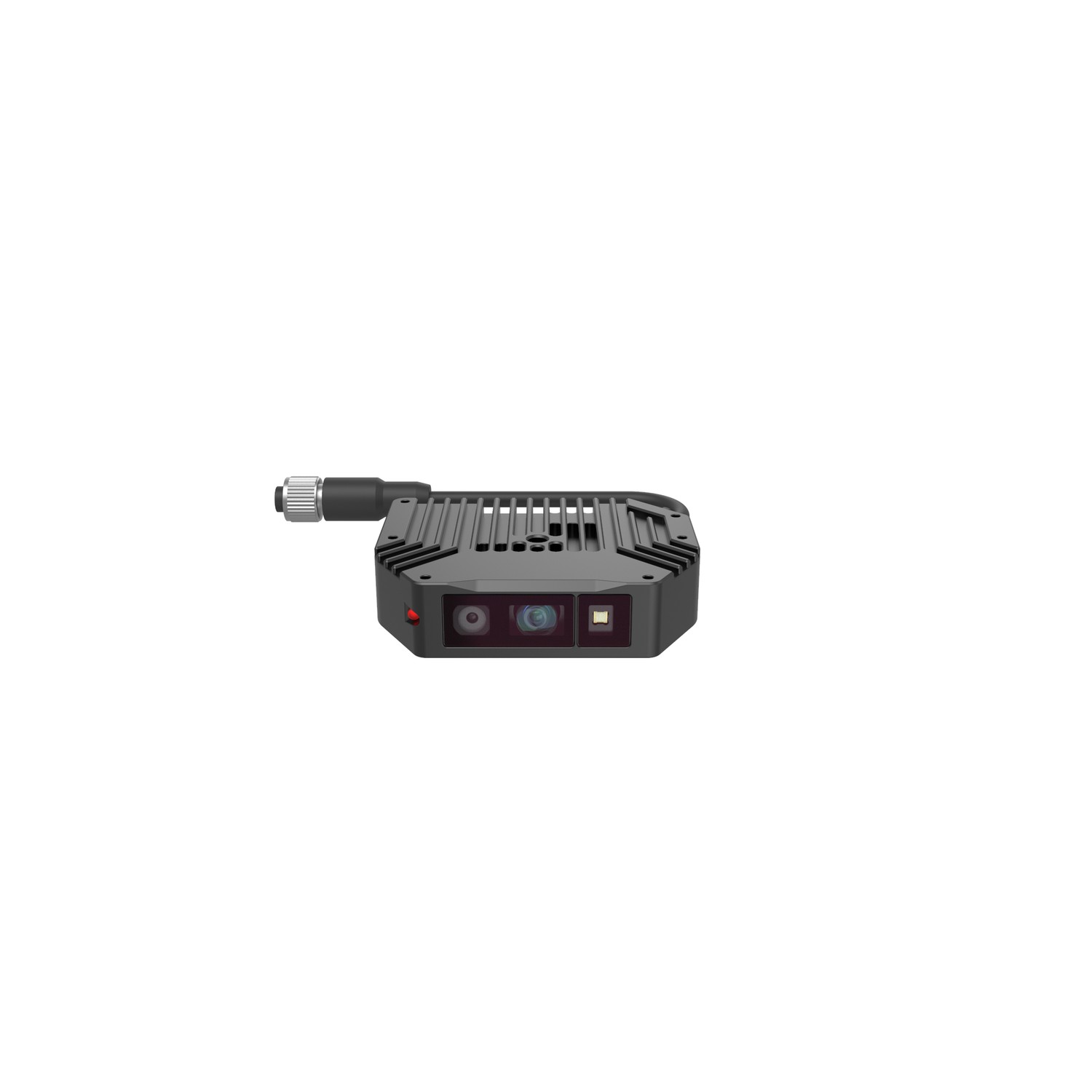

Percipio TM265-E1 dToF RGB-D Camera
Vendor: 图漾科技 Percipio
Product: TM265-E1 dToF RGB-D 相机
Percipio TM265-E1 3D dToF RGB-D camera: 940 nm IR laser, 120°/50° ultra-wide FOV, 0.05-5 m range, 240x96 @25 fps depth plus 1920x1080 @30 fps color with RGB-D alignment, Z accuracy 6 mm @1 m, 76 ms latency, 100 Mbps Ethernet over M12 connector, IP65, 85x68x20 mm / 174 g, <5 W; millimeter-level depth accuracy and strong-light resistance for mobile-robot navigation, obstacle avoidance and traffic counting.
| fov | 120° H / 50° V |
| power | <5 W, DC 24V +/-20% |
| weight | 174 g |
| latency | 76 ms |
| interface | 100 Mbps Ethernet, M12 A-code 8-pin |
| principle | dToF, 940 nm IR laser |
| dimensions | 85x68x20 mm |
| z_accuracy | 6 mm @1 m, 15 mm @2.5 m |
| working_range | 0.05-5 m (recommended 0.3-3 m) |
| rgbd_alignment | Supported |
| color_resolution | 1920x1080 @30 fps (JPEG) |
| depth_resolution | 240x96 @25 fps (max) |
| ingress_protection | IP65 |
