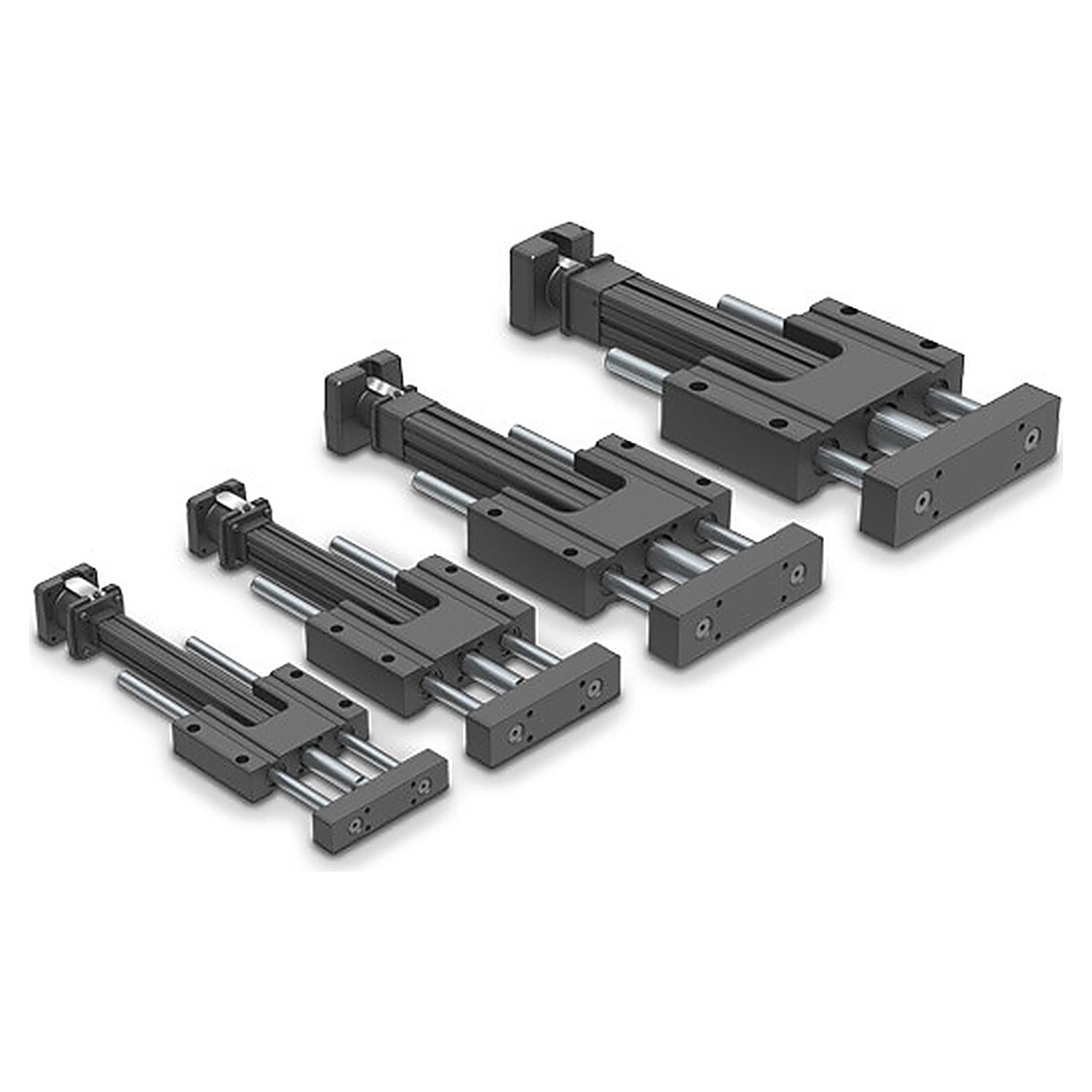

Tolomatic GSA Guided-Rod Electric Linear Actuators (up to 18.5 kN)
Vendor: Tolomatic (USA)
Product: GSA 导向杆电动直线执行器
Tolomatic (USA) GSA is a high-thrust guided-rod electric linear actuator in four frames GSA12/16/24/32: max force 580-18,500 N (130-4,160 lbf), max load 182-544 kg (400-1,200 lbs), speed to 3,124 mm/s (123 in/s) and strokes 457-914 mm (18-36 in); the guided-rod anti-rotation design is stiff against side loads for pressing, clamping, lifting and pushing in automation and robot test rigs.
| max_load | 182-544 kg (400-1,200 lbs) |
| max_force | 580-18,500 N (130-4,160 lbf) |
| max_speed | 1,270-3,124 mm/s (50-123 in/s) |
| max_stroke | 457-914 mm (18-36 in) |
| frame_sizes | GSA12 / GSA16 / GSA24 / GSA32 |
