Vendor: Tongchuan Precision
Product: TCM

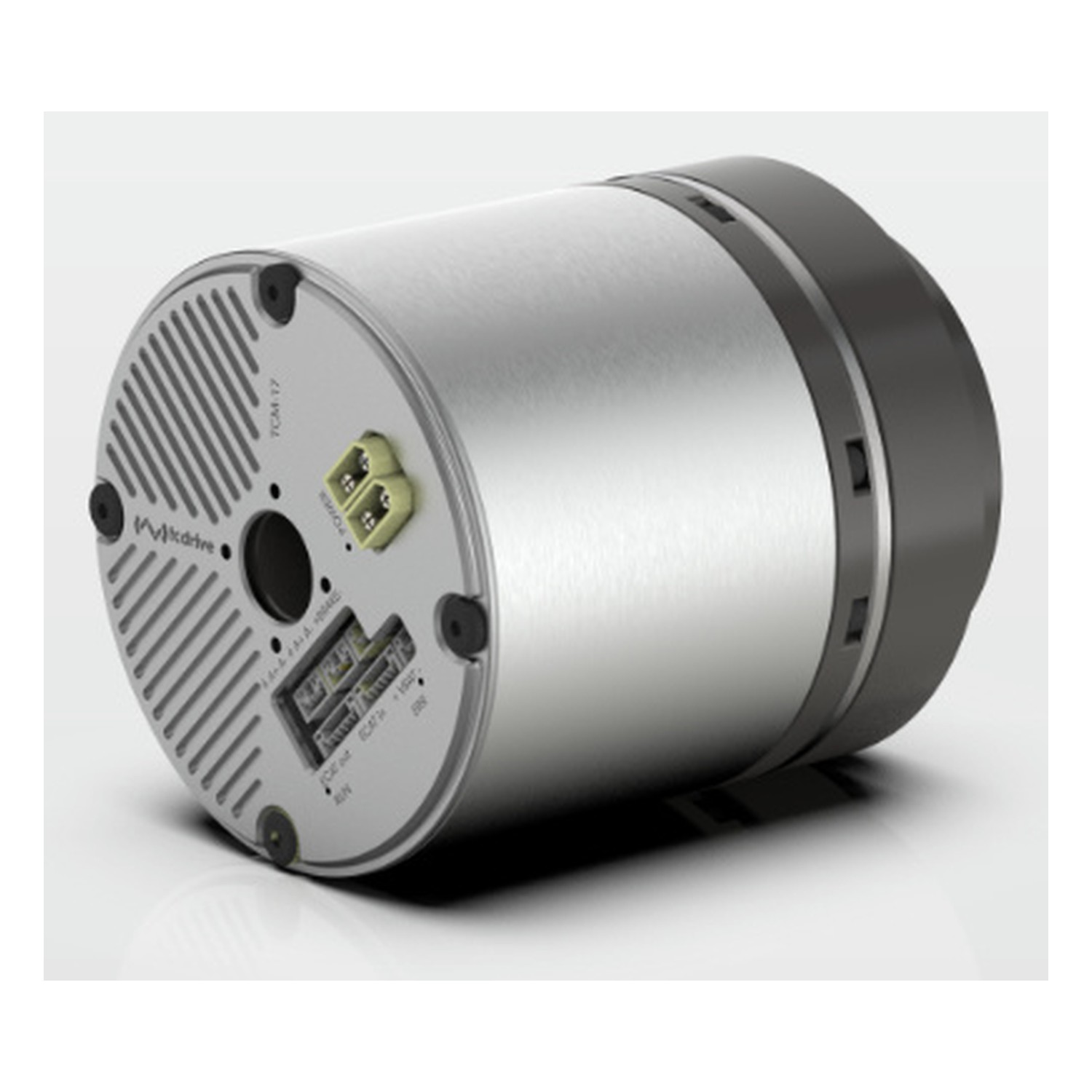

TCM14B/17B closed-loop joint modules, DC48V, dual magnetic encoders with built-in brake, full closed-loop control, backlash <=10 arcsec, 90 arcsec positioning, 0.95/1.4 kg, ratios 11-40, for lightweight joints and exoskeletons.
| Ratio | 11-40 |
| Models | TCM14B/17B |
| Weight | 0.95/1.4 kg |
| Encoder | dual magnetic encoder + brake |
| Voltage | DC48V |
| Backlash | <=10 arcsec |
| Positioning | 90 arcsec |
Windouble KSG-series KSG-32-160 harmonic joint module: 160:1 ratio, 800 Nm rated / 1600 Nm peak torque, 160 mm body, 22 kg, Φ55h6 output shaft. The highest-torque model in the series, for heavy-duty robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
Windouble KSG-series KSG-25-160 harmonic joint module: 160:1 ratio, 400 Nm rated / 800 Nm peak torque, 135 mm body, 11.5 kg, Φ42h6 output shaft. Suited to heavy-load robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
Windouble KSG-series KSG-20-120 harmonic joint module: 120:1 ratio, 180 Nm rated / 360 Nm peak torque, 105 mm body, 5.5 kg, Φ32h6 output shaft. Suited to medium/heavy-load robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
Windouble KSG-series KSG-17-100 harmonic joint module: 100:1 ratio, 85 Nm rated / 180 Nm peak torque, 80 mm body, 2.4 kg, Φ22h6 output shaft. Suited to small/medium-load robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
