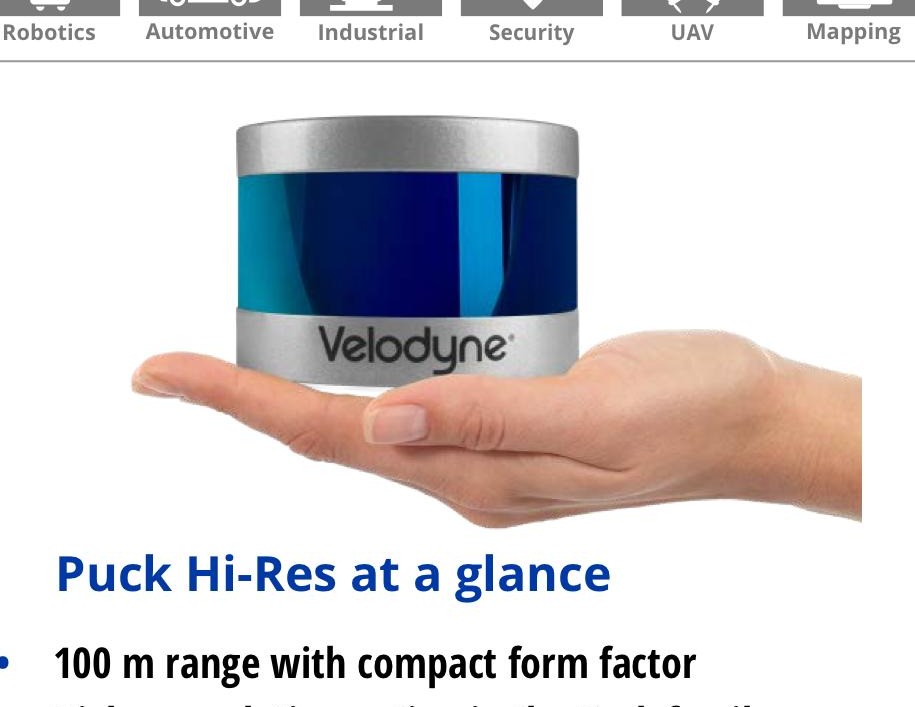

Velodyne Puck Hi-Res High-Resolution 3D LiDAR

Vendor: Velodyne LiDAR (Ouster, USA)

Product: Puck Hi-Res 3D

Velodyne Puck Hi-Res High-Resolution 3D LiDAR

Velodyne Puck Hi-Res is the high-resolution Puck: 16 channels, 360x20 deg FOV (+10 to -10), 1.33 deg vertical resolution, 100 m range at +/-3 cm, 0.1-0.4 deg azimuth, 5-20 Hz; 905 nm Class 1 eye-safe, 8 W, ~750 g, 0 to +60 C. Denser point clouds for inspection, surveying and fine-grained mapping.

Weight	~750 g
Channels	16
Interface	100 Mbps Ethernet
Max Range	100 m
Wavelength	905 nm (Class 1 eye-safe)
Storage Temp	-40 to +105 C
Vertical Fov	20 deg (+10 to -10)
Input Voltage	9-18 V
Rotation Rate	5-20 Hz
Horizontal Fov	360 deg
Operating Temp	0 to +60 C
Range Accuracy	+/-3 cm (typical)
Power Consumption	8 W typ.
Azimuth Resolution	0.1-0.4 deg
Vertical Resolution	1.33 deg

LiDAR High-Resolution 16-beam 360°Inspection Surveying and mapping SLAM

https://ouster.com/downloads/velodyne-downloads
