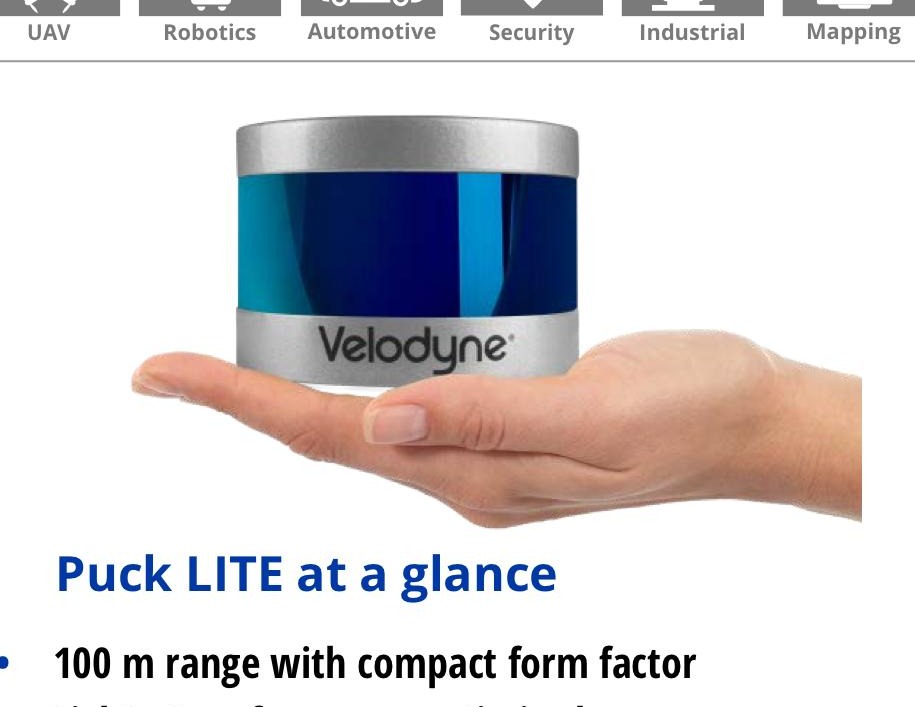

Velodyne Puck LITE Lightweight 3D LiDAR

Vendor: Velodyne LiDAR (Ouster, USA)

Product: Puck LITE 3D

Velodyne Puck LITE is the lightweight Puck: 16 channels, 360x30 deg FOV, 100 m range at +/-3 cm, 2.0 deg vertical resolution, 0.1-0.4 deg azimuth, 5-20 Hz, ~600k pts/s; 903 nm Class 1 eye-safe, 8 W, only ~590 g, -10 to +60 C. Ideal for payload-sensitive platforms like UAVs and inspection robots.

Weight	~590 g
Channels	16
Interface	100 Mbps Ethernet
Max Range	100 m
Point Rate	~600k pts/s
Wavelength	903 nm (Class 1 eye-safe)
Storage Temp	-40 to +105 C
Vertical Fov	30 deg (+15 to -15)
Input Voltage	9-18 V
Rotation Rate	5-20 Hz
Horizontal Fov	360 deg
Operating Temp	-10 to +60 C
Range Accuracy	+/-3 cm (typical)
Power Consumption	8 W typ.
Azimuth Resolution	0.1-0.4 deg
Vertical Resolution	2.0 deg

LiDAR Lightweight 16-beam 360°Drones Inspection SLAM

https://ouster.com/downloads/velodyne-downloads
