8-axis EtherCAT motion PLC with six local pulse axes A motion-control PLC supporting absolute and relative positioning, speed and torque control, electronic cams and interpolation.
EtherCAT five-phase stepper drive, 20–50 VDC, 2.2 A An EtherCAT drive in Leadshine’s DM5 five-phase stepper family for networked motion control.

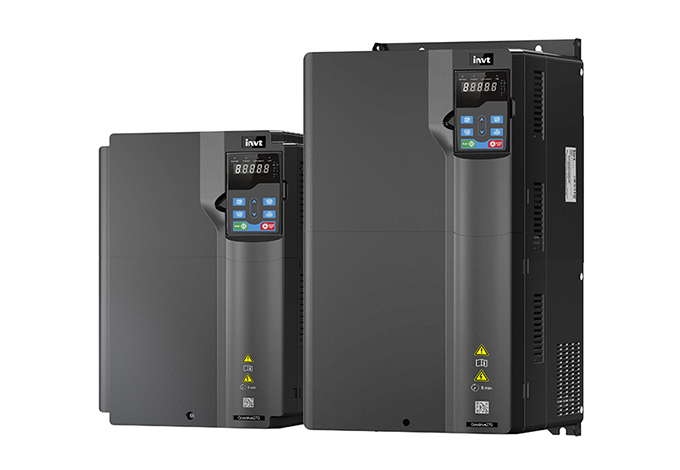

MH860A Series Hydraulic Servo Drive is designed for hydraulic equipment such as injection molding machine, die-casting machine, and hydraulic press, and the servo system features energy saving, high accuracy, high efficiency and durability for adopting high performance vector control. The MH860A series drive supports expansion via CAN communication interface to form a multi-pump parallel system to realize the hydraulic control on large flow equipment. Power range: AC 3PH 380V–480V 7.5–110kW

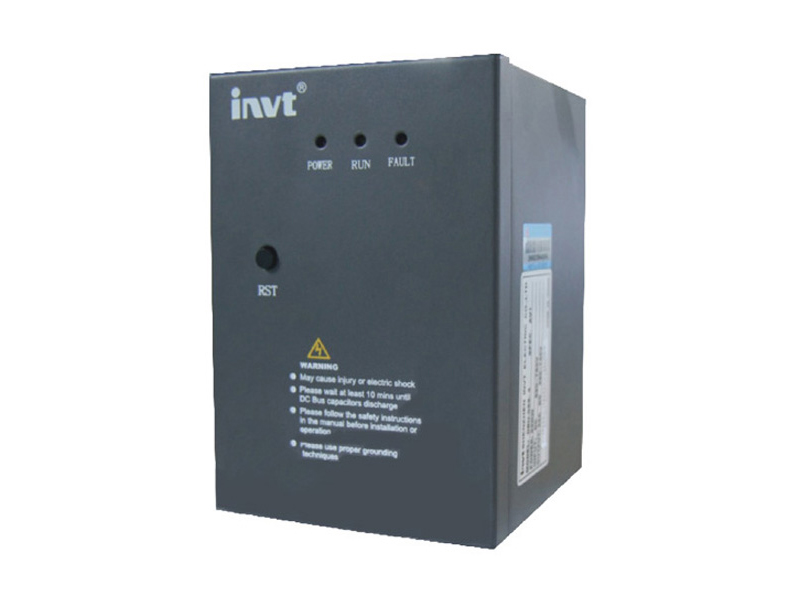

DBU100H dynamic braking units are mainly used in lifting equipment, equipment with high inertia, and some scenarios where crash deceleration, positioning and braking are needed, such as mine hoists, elevators, textile machinery, paper-making machinery, centrifuges, washing machines and overhead cranes.

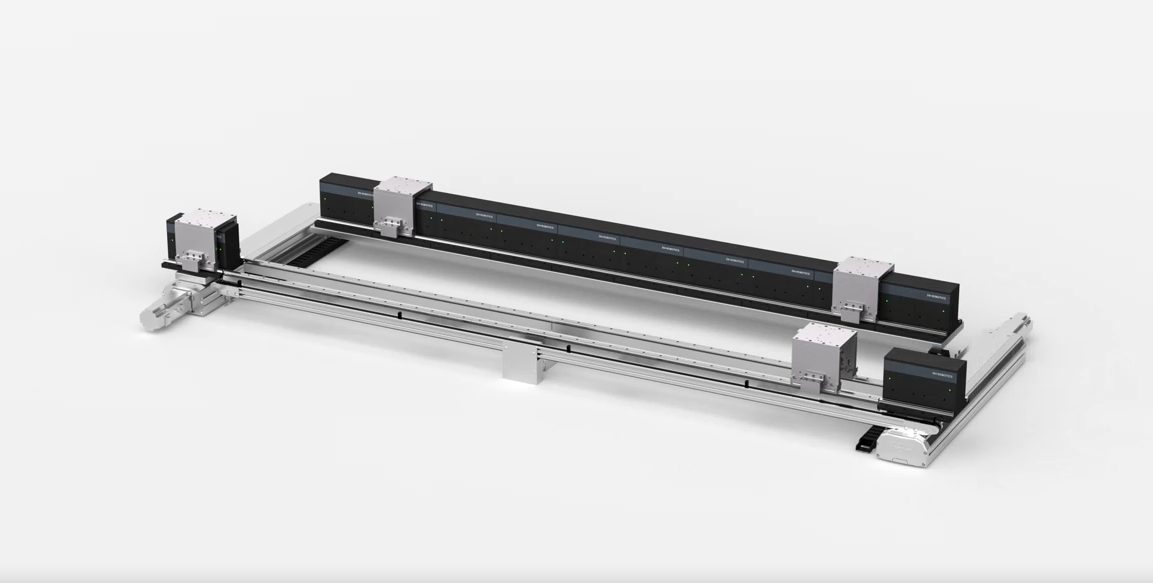

iFM Intelligent Flexible Motion System A modular high-speed, high-precision intelligent transport system offered in horizontal and vertical layouts, with belt or electromagnetic return options.
Multi-axis EtherCAT servo drives for precise motion control Dual-axis and four-axis integrated servo drives built on EtherCAT for coordinated, high-response motion control in automation equipment and intelligent production lines.

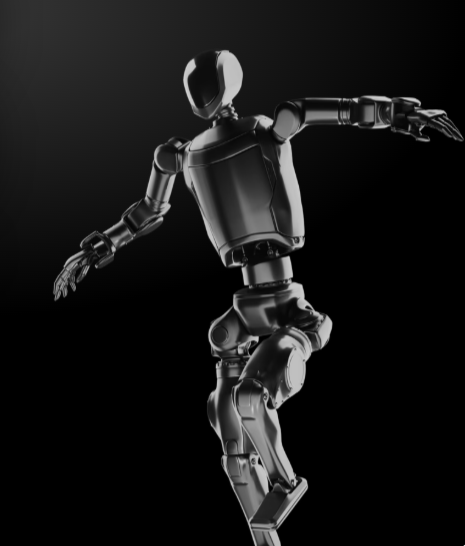

Rapidly building world-class motion capabilities for robots

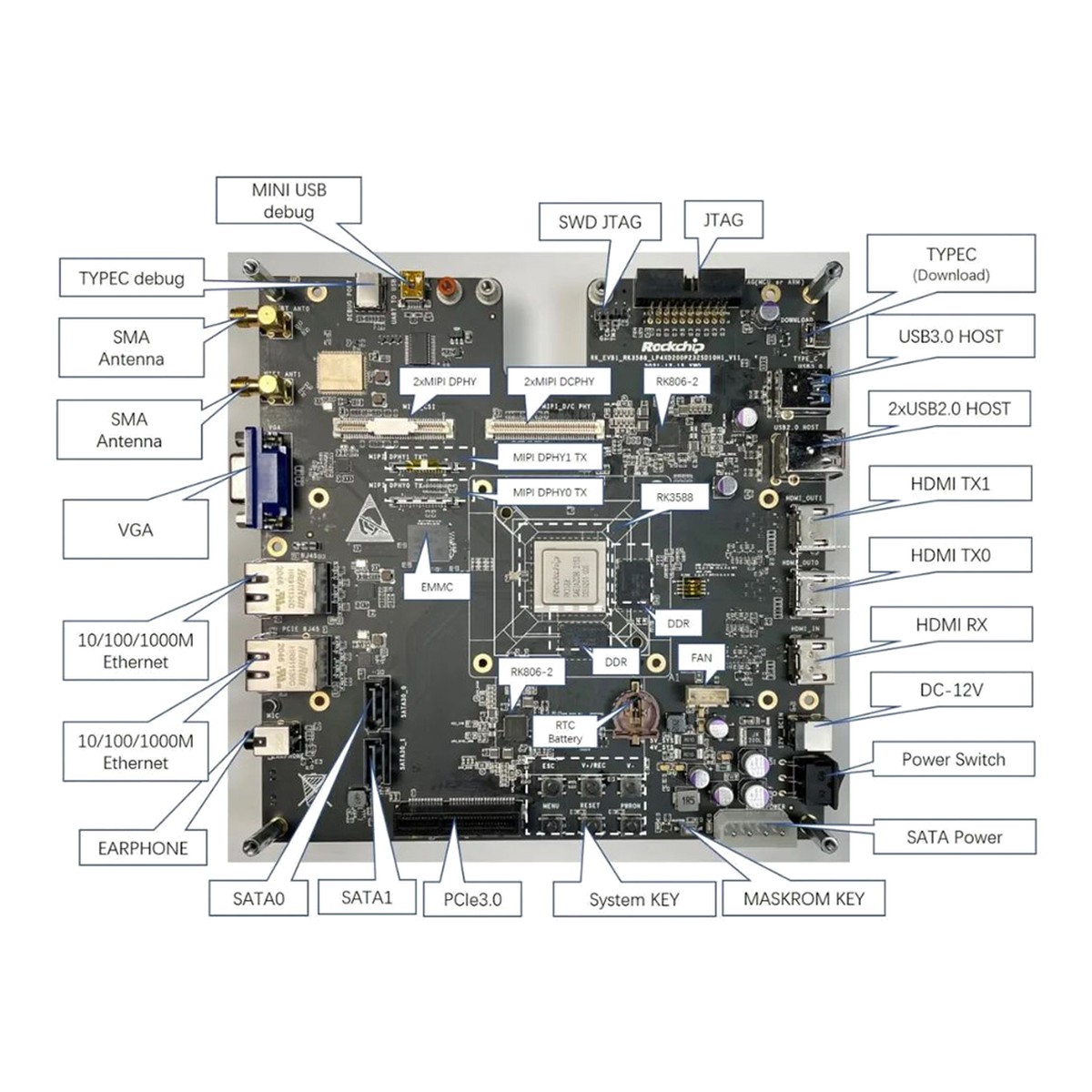

The RK3588 is Rockchip's high-performance application processor for ARM PCs, edge computing and AIoT terminals, and is widely used in robot main controllers and edge-AI modules. Built on an 8nm process, it integrates 4x Cortex-A76 plus 4x Cortex-A55 cores with a shared 3MB L3 cache, an ARM Mali-G610 MP4 GPU, and a 6 TOPS triple-core NPU supporting INT4/INT8/INT16/FP16/BF16/TF32 mixed-precision operations. Its memory interface supports four-channel 64-bit LPDDR4/LPDDR4X/LPDDR5 with up to 32GB address space, plus eMMC 5.1 HS400 storage. Video capabilities include H.265/VP9 8K@60fps decoding and H.264/H.265 8K@30fps encoding, while the hardware ISP handles up to 48-megapixel input with HDR, 3A, LSC and 3DNR. Connectivity covers HDMI 2.1/eDP/DP/MIPI, PCIe 3.0/2.0, SATA 3.0, RGMII, USB 3.1/2.0 and Type-C, in an FCBGA1088L package (23x23 mm, 0.65 mm ball pitch).
Windouble KSG-series KSG-32-160 harmonic joint module: 160:1 ratio, 800 Nm rated / 1600 Nm peak torque, 160 mm body, 22 kg, Φ55h6 output shaft. The highest-torque model in the series, for heavy-duty robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
Windouble KSG-series KSG-25-160 harmonic joint module: 160:1 ratio, 400 Nm rated / 800 Nm peak torque, 135 mm body, 11.5 kg, Φ42h6 output shaft. Suited to heavy-load robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
Windouble KSG-series KSG-20-120 harmonic joint module: 120:1 ratio, 180 Nm rated / 360 Nm peak torque, 105 mm body, 5.5 kg, Φ32h6 output shaft. Suited to medium/heavy-load robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
Windouble KSG-series KSG-17-100 harmonic joint module: 100:1 ratio, 85 Nm rated / 180 Nm peak torque, 80 mm body, 2.4 kg, Φ22h6 output shaft. Suited to small/medium-load robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
