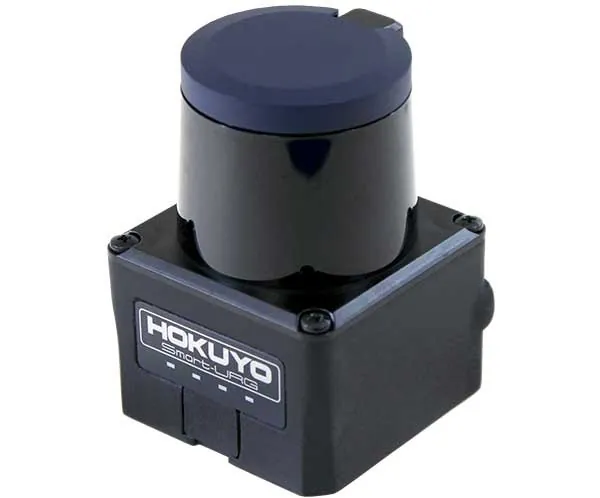

Hokuyo (Hokuyo Electric) UST-20LX 2D scanning LiDAR
Vendor: Hokuyo Automatic 北阳电机 (Japan)
Product: UST-20LX 2D scanning LiDAR
UST-20LX is a mid-to-long range 2D scanning LiDAR from Hokuyo (Hokuyo Electric), with a detection range of 0.06-20 m (max 60 m), 270° scan angle, 0.25° angular resolution, 25 ms high-speed scanning, accuracy ±40 mm, IP65 protection and 130 g lightweight design, suitable for navigation and area monitoring of outdoor and large-space robots.
| Weight | 130 g |
| Accuracy | ±40 mm |
| Interface | Ethernet 100BASE-TX |
| Scan Time | 25 ms (2400 rpm) |
| Dimensions | 50×50×70 mm |
| Protection | IP65 |
| Scan Angle | 270° |
| Wavelength | 905 nm, Class 1 |
| Repeatability | σ < 30 mm |
| Operating Temp | -10°C to +50°C |
| Supply Voltage | 12/24 VDC |
| Detection Range | 0.06-20 m (max 60 m) |
| Angular Resolution | 0.25° |
