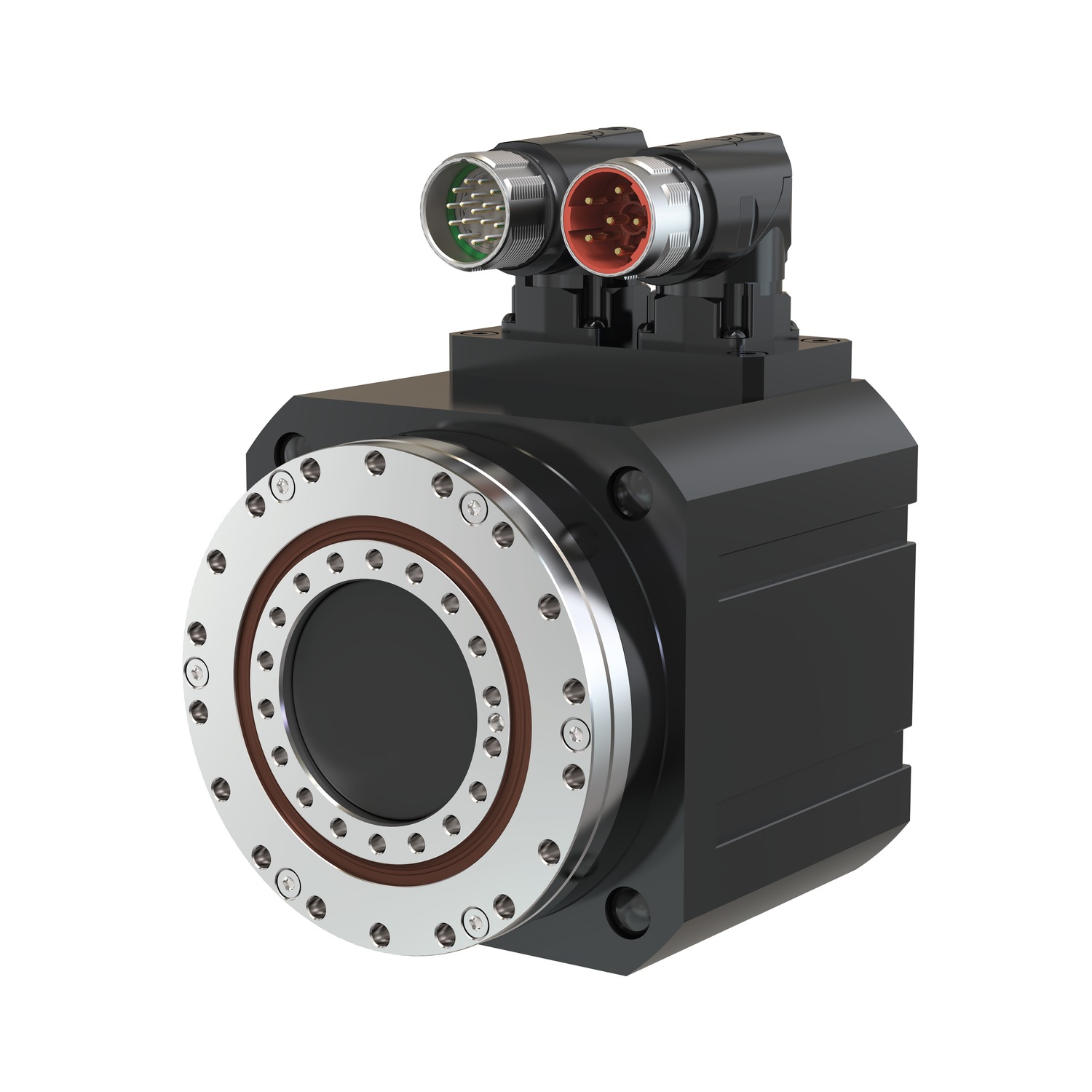

SPINEA DriveSpin Integrated Servo Joint Actuator Series
Vendor: SPINEA (Timken, Slovakia)
Product: DriveSpin 系列一体化伺服关节执行器
SPINEA (Slovakia, now part of Timken) is a European leader in precision cycloidal reduction and integrated actuators. DriveSpin combines an optimized servomotor with a TwinSpin cycloidal gear into a zero-backlash, high-dynamic actuator with high torsional/tilting stiffness and integrated output bearing: DS Standard covers 18-460 N·m rated torque with up to 1150 N·m acceleration/braking torque, ratios 47-133, 2000 rpm rated input; DSH hollow-shaft, DSM modular and DSF flat variants complete the line. Used in 6-axis robots, gantries and manipulators, CNC machines, bending machines, medical equipment, aerospace, flight simulators, semiconductor and radar systems.
| variants | DS Standard / DSH Hollowshaft / DSM Modular / DSF Flat |
| applications | 6-axis robots, gantry robots, CNC, bending machines, medical, aerospace, simulators, semiconductor, radar |
| gear technology | TwinSpin cycloidal, zero backlash, integrated radial-axial output bearing |
| reduction ratios | 47 - 133 |
| rated input speed | 2000 rpm |
| sizes / rated torque | DS050 18; DS060 18; DS070 50; DS095 85; DS110 122; DS115 170; DS140 268; DS155 460 N·m |
| acceleration/braking torque | 36 - 1150 N·m |
