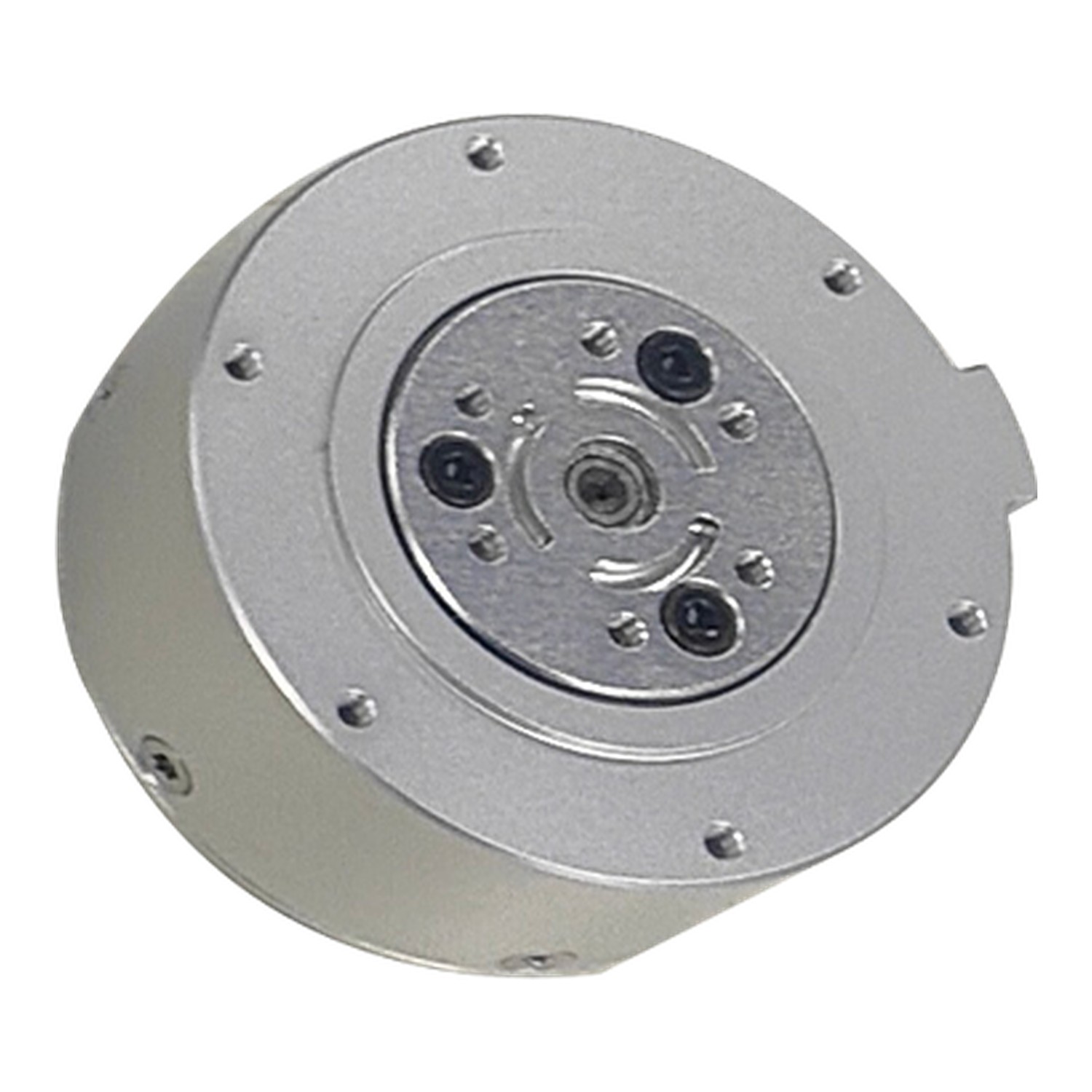

Vendor: Yobotics
Product: BM （M5–M200）
Yobotics' BM integrated joint module family spans M5/M24/M48/M144/M160/M200: 280 g-4700 g, 24/42/72 VDC, rated torque 5.5-60 N.m and peak 12-200 N.m, CAN 1 Mbps bus, dual absolute 14-bit encoders with power-off position memory - BLDC motor plus reducer in one unit for quadruped/humanoid robots, cobots and exoskeletons.
| Power supply | 24 / 42 / 72 VDC |
| Communication | CAN 1 Mbps |
| Encoders | 14 bit |
Windouble KSG-series KSG-32-160 harmonic joint module: 160:1 ratio, 800 Nm rated / 1600 Nm peak torque, 160 mm body, 22 kg, Φ55h6 output shaft. The highest-torque model in the series, for heavy-duty robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
Windouble KSG-series KSG-25-160 harmonic joint module: 160:1 ratio, 400 Nm rated / 800 Nm peak torque, 135 mm body, 11.5 kg, Φ42h6 output shaft. Suited to heavy-load robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
Windouble KSG-series KSG-20-120 harmonic joint module: 120:1 ratio, 180 Nm rated / 360 Nm peak torque, 105 mm body, 5.5 kg, Φ32h6 output shaft. Suited to medium/heavy-load robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
Windouble KSG-series KSG-17-100 harmonic joint module: 100:1 ratio, 85 Nm rated / 180 Nm peak torque, 80 mm body, 2.4 kg, Φ22h6 output shaft. Suited to small/medium-load robot joints. Windouble is a Chinese national-level specialized 'little giant' enterprise focused on high-precision harmonic drives for robots.
