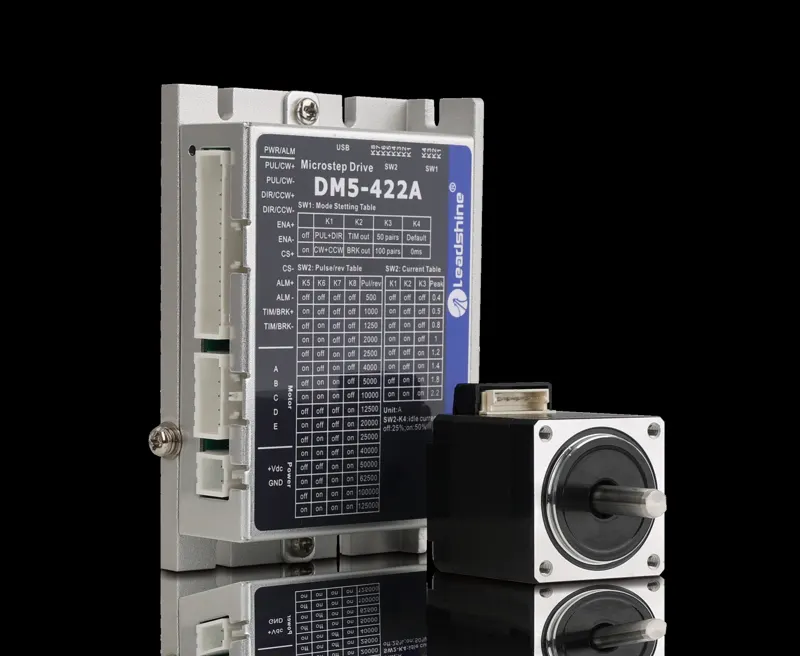

DM5 Five-Phase Stepper Drive

DM5 Five-Phase Stepper Drive

DM5 high-end five-phase stepper drives, 24-36 VDC. DM5-422A: 2.2 A peak, matches frame-28 motors, 1 MHz pulse input, TYPE-C debug with Motion Studio, 4 DI / 2 DO, pulse/direction/enable and microstep configuration.

Stepper DriverFive-Phase SteppingTYPE-C DebuggingLeadshine
ACM2H General-Purpose AC Servo Motor

ACM2H General-Purpose AC Servo Motor

ACM2H general-purpose AC servo motors, 50-1000 W, frames 40-80 mm, up to 6500 rpm, silver body, plug-in connectors, IP67, 24-bit encoder standard, CE/UL. Example ACM2H-04A5: 50 W, 3000 rpm, 0.16 N·m.

Servo motorsAC ServoIP67Leadshine
ACM2L General-Purpose AC Servo Motor

ACM2L General-Purpose AC Servo Motor

ACM2L general-purpose AC servo motors, 30 W-5 kW, frames 25-130 mm, up to 7000 rpm, 24-bit encoder standard, plug-in connectors, IP67, CE/UL. Example ACM2L-0401: 100 W, 3000 rpm, 0.32 N·m.

Servo motorsAC ServoIP67Leadshine
L8EC EtherCAT High-End AC Servo Drive

L8EC EtherCAT High-End AC Servo Drive

L8EC high-end EtherCAT rotary AC servo drives: 3.5 kHz velocity loop bandwidth, 125 us bus sync cycle, built-in brake drive and SIL3 STO, full-closed-loop/gantry/super-following modes. AC220 1/3-phase; L8EC-100F rated 100 W, 1.2/4.8 A.

Servo drivesEtherCATSTOLeadshine

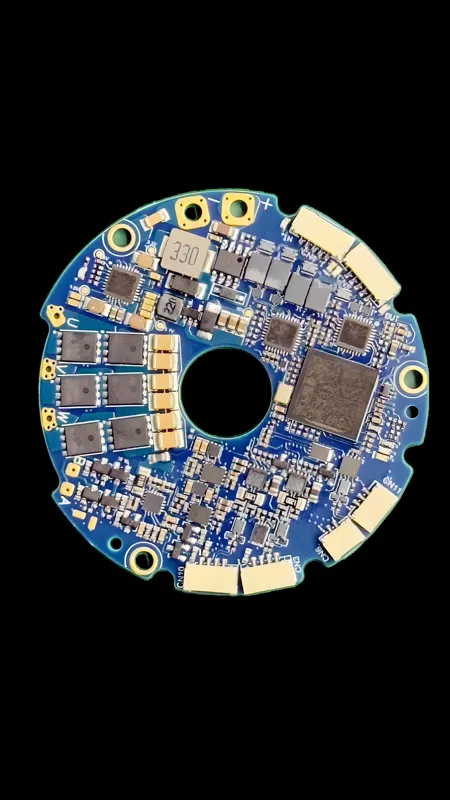

CDH Series Ring Servo Drive for Humanoid Joints

CDH Series Ring Servo Drive for Humanoid Joints

CDH series ring servo drives sized for humanoid robot joints: 48 V, 5/15 Arms rated/peak, OD 58 mm with 15 mm hollow bore, dual EtherCAT plus CAN/RS485/USB, optional 2x19-bit absolute encoders and brake control.

Ring DriverHumanoidEtherCATJoint ActuatorLeadshine

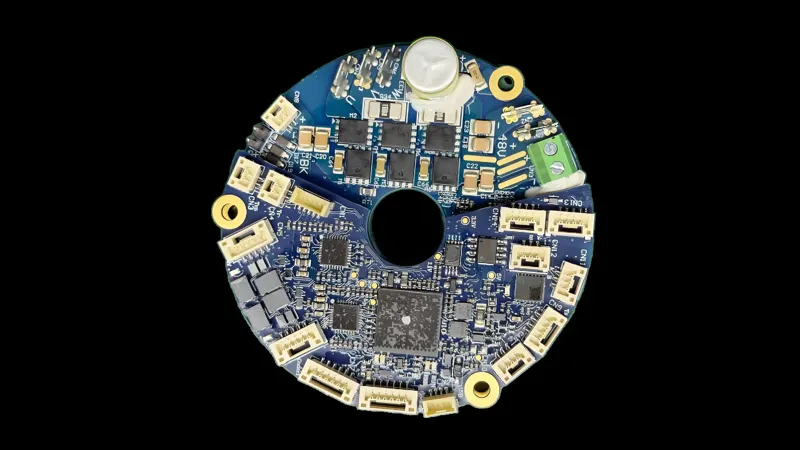

CD Series Ring Servo Drive for Collaborative Joints

CD Series Ring Servo Drive for Collaborative Joints

CD series ring-shaped servo drives for collaborative robot joints: 48 V, 10/30 Arms rated/peak, hollow-ring mechanics (OD 65 mm / ID 15 mm), dual EtherCAT (DS402, CoE, FoE, FSoE) plus CAN/RS485/USB, optional 2x19-bit absolute encoders and dual STO.

Ring DriverServo drivesEtherCATCollaborative Robot JointLeadshine
FM1 Frameless Torque Motor

FM1 Frameless Torque Motor

FM1 series frameless torque motors in four standard frame sizes (50/70/85/115 mm). 48 VDC, up to 6500 rpm; motor dimensions and electrical parameters customizable for robot joint and direct-drive applications.

Frameless torque motorsFrameless motorsJoint motorsLeadshine
FM2 High-Density Frameless Torque Motor

FM2 High-Density Frameless Torque Motor

FM2 series high-density frameless torque motors in eight standard frame sizes from 28 to 127 mm. 48 VDC, up to 6500 rpm, high torque density for direct-drive robot joints; custom sizes and electrical parameters supported.

Frameless torque motorsFrameless motorsJoint motorsLeadshine
CLC - Servo drives

CLC - Servo drives

CLC servo drives: Open-frame motor controllers for stepper and BLDC motors. EtherCAT, CANopen, Modbus RTU. For OEMs & robotics.

Servo drivesNanotecActuators
PD6-EB - Brushless DC motor with integrated controller/drive IP65 – 80mm

PD6-EB - Brushless DC motor with integrated controller/drive IP65 – 80mm

PD6-EB: Intelligent compact drives with controller & encoder ✓ space-saving ✓ powerful ✓ IP65 ✓ Profinet, CANopen, EtherCAT, Modbus RTU/TCP, EtherNet/IP

Brushless DC motorsNanotecActuators
N6 - Motor controllers/drives

N6 - Motor controllers/drives

N6 motor controller for NEMA 14–34 stepper & BLDC motors – with FOC, closed-loop control & broad fieldbus compatibility. Discover now!

Motor ControllerNanotecActuators
LGA56 - Captive linear actuator – NEMA 23

LGA56 - Captive linear actuator – NEMA 23

56 mm (2.2 in) flange ✓High-precision ✓Standard & custom thread leads and stroke lengths. Captive linear actuators with NEMA 23 stepper motor >>

Motor/ActuatorNanotecActuators
